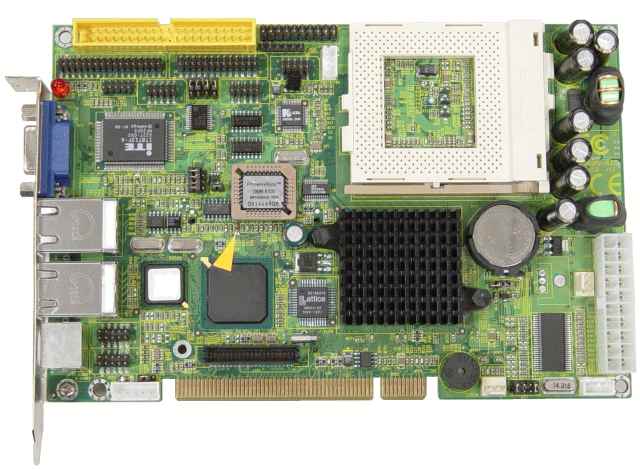

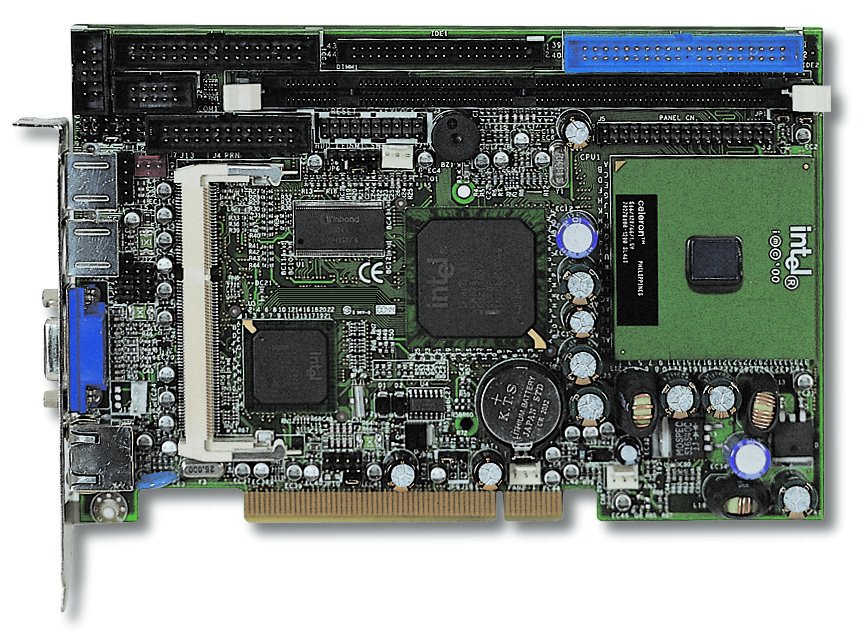

IND-C815DL PCI INDUSTRIAL CPU BOARD

Features

	Half-size PCI Bus Compatible Single Board
	Supports Socket 370 FC-PGA2 Intel PIII (Tualatin) up to 1.4GHz and Intel Celeron 66/100/133MHz FSB Processors
	Up to 512 MB of PC-100/133 SODIMM MODULE
	Embeded graphics Memory Controller with TMDS, CRT, and TV output. Display memory up to 32MB. CRT resolution 1280x1024@24bpp, 1600x1200@8bpp
	Intel 82815 & 82801BA chipset include Graphic Memory Controller Hub, I/I controller Hub 2, and Firmware Hub
	Dual LAN, Intel 81559 controller, 10/100 Mbps, autoswitch, with dual RJ-45 connectors
	CompactFlash socket for up to 512MByte, 8 Mbit Flash Disk device on BIOS socket
	4 USB v1.1 ports, IrDA, Floppy, Parallel, K/B & Mouse ports
	One RS-232, one RS-232/422/485 selectable serial ports
	Enhanced IDE supports 2 ATAPI, Ultra DMA 100MB/Sec. devices
	AC97 Audio controller, line-in/out CD-in, Mic-in and speaker
	128-level Programmable watchdog timer
	Plug & Play AWARD FLASH BIOS with 2MB Flash
	Power requirements : +5V@4.7A, +3.3V@2.6A,+12V@0.15A
	Small Size (7.3" x 4.8") 185mm x 122mm
	Operating Temp 0-60° C , 10-90%RH, non-condensing

The IND-C815DL is a highly integrated industrial single board computer (SBC) containing a high performance Low power consumption Socket-370 Pentium III Tualatin and Celeron with FSB 133/100MHz processors, graphic visual controller and DUAL 10/100 base-T autoswitch LAN controller. The IND-C815DL is built around the Intel most advanced core logic chipset available, the Intel 82815. The performance that comes with this chipset includes SDRAM memory optimization and bus design.

The IND-C815DL provides on-board Dual 10/100 Mbps LAN, integrated with Intel 82559 and ICH2 82562ET controller. This board equipped with four USB ports supporting up to 127 USB devices. The serial ports provide RS-232/RS-422/RS-485 jumper selectable.

The IND-C815DL on-board CompactFlash socket that uses supports Type I/II cards up to 512MByte and 8Mbit Flash Disk device on BIOS socket provided. The Award BIOS with 2MB Flash in Firmware Hub support PnP, APM, Multi boot, DMI, and ACPI, meet various requirements of the most advanced industrial environment.

The IND-C815DL contains an on-board daughterboard connector for DVI and TV-out, support NTSC, PAL,CVBS, S-Video and RGB outputs up to 1024x768 graphics resolutions.

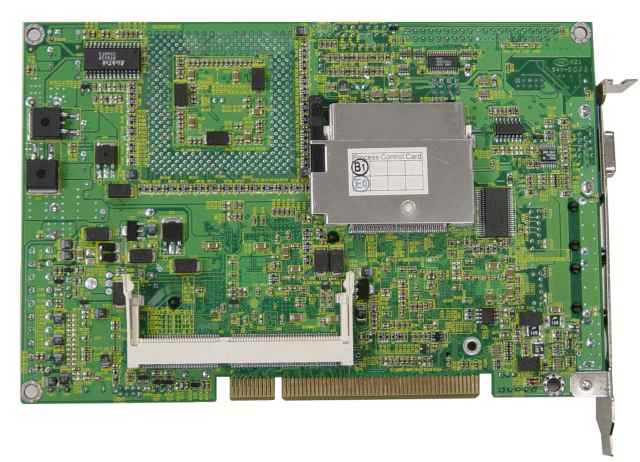

back of board
