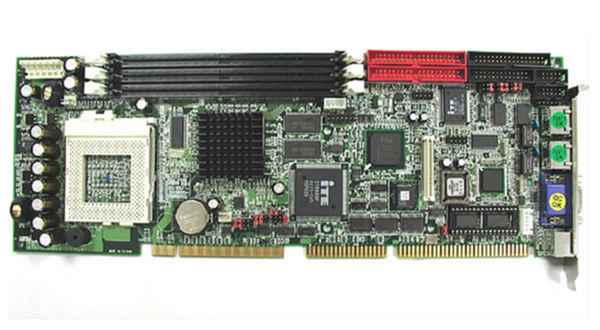

IND-P815LV Pentium III INDUSTRIAL CPU BOARD

Features

	Full-size Pentium III PICMG Compatible Single Board Computer
	Socket 370, Pentium III Intel^® Celeron CPUs. 566Mhz~1.2GHz
	Front Side Bus 66/100/133 MHz
	Two 168pin SDRAM socket for up to 512MB memory
	Integrated Intel^® 82815GMCH/ICHE chipset /graphics controller
	Fast PCI ATA 33/66/100 IDE controller, supports four drives
	Intel^® 82559 and 82562 10/100 based Ethernet controller
	Multi I/Os for IrDA, Floppy Drive, Parellel port, K/B & Mouse
	COM 1 as RS-232 and COM 2 as RS-232/422/485 selectable
	Five USB 1.1 ports, four internal and one external
	On-board AC97 3D audio.
	Watchdog Timer from 0.5sec. to 64sec.
	DOC socket, support M-system Disk-On-Chip up to 288MB
	PC/104 expansion slot
	Power requirement +5V@7.5A, +12V@140mA, -12V@30mA
	Plug & Play AMI FLASH BIOS
	Board Size 338 x 122 mm (13.3" x 4.8")
	Operating Temp 0° - 60° C, storage temperature -20° - 80° C,
	Relative humidity 10-90% non-condensing

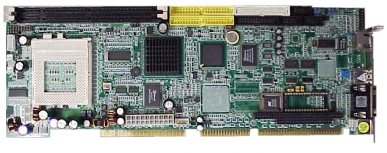

The IND-P815LV is a highly integrated industrial single board computer (SBC) containing a high performance Socket 370 Pentium III processors, integrated high resolution VGA and LAN controller. The IND-P815LV is built around the Intel most advanced core logic chipset available, the Intel 82815 Chipset, supports the low power processors and Intel socket 370 processors up to 1.2GHz. The performance that comes with this chipset includes SDRAM memory optimization and FSB 133HMz , PCI ATA, and USB design.

The IND-P815LV integrated Intel^® 82559 and 82562 10/100 based LAN Ethernet, and Intel^® 3D VGA controller with Direct AGP, 133/100MHz 4 MB of display cache, provides Digital Video Out interface to drive a 1280x1024 resolution digital flat panel or digital CRTs.

The IND-P815LV contains an on-board Disk-On-Chip and PC/104 connectors for extened applications.

The IND-P815LV is equipped with five USB 1.1 ports supporting up to 127 USB devices. The PCI ATA-33/66/100 supports 4 drives, and the COM2 serial port can be jumper selectable for RS-232/422/485 to eliminate data loss at high baud rates.
