ISA Bus Compatible Single Board Computer
486DX2-66 or 486DX4-100 CPU
256KB Cache (expandable to 512KB)
On-board PC-104 Connector
Socket for DiskOnChip from M-Systems supports up to 24MB Flash Disk
On-board PCI IDE port supports two drives
On-board Dual FDD Controller
Two RS232 Serial Ports with 16550 FIFO
Multi-Mode (SPP/EPP/ECP), High Performance Parallel Port
8 Level Watch Dog Timer
On-board PS/2 Mouse connector
Award BIOS
Power requirements : +5V @ 3A
Small Size (7.28" x 4.8")
Operating Temp 0-55 C , 10-95%RH, non-condensing

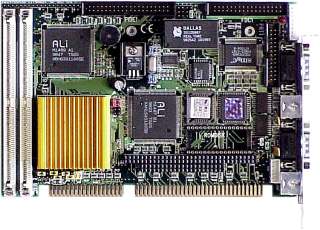

The IND-486D is a powerful single board computer that supports high performance 486 CPUs. Compatible with older passive backplane systems, the IND-486D can replace outdated 386 and slower 486 systems at a very reasonble cost.

Wide use of CMOS components and surface mount technology on a six layer printed circuit board result in a SBC that is both rugged and cost effective. With its high performance, low power consumption, small size, wide temperature range and AT Bus compatibility, it is an ideal solution for the OEM/system integration marketplace.

The IND-486D contains an on-board socket that supports the DiskOnChip form M-Systems. This can provide upto 24MB of bootable Flash Disk.

The IND-486D provides a high performance parallel port supporting SSP, EPP and ECP modes. In addition, both serial ports contain 16550 compatible FIFOs to eliminate data loss at high baud rates.

The watch dog timer provides the fail safe operation required for cirtical control applications. If a hardware or software malfunction occurs, the IND-486D either generates a Reset or Non Maskable Interrupt (jumper selectable). This insures that the program will restart in an orderly and predictable manner.
