IND-670 INDUSTRIAL CHASSIS

Features

Wall or backpanel mount enclosure

Rugged plated steel chassis

6-slot (Optional 4-Slot) PC-AT compatible Passive Backplane shock mounted to withstand vibration

Supports 386, 486, 586,Pentium, PIII or Celeron plug-in CPU boards

Field replaceable 230 watt power supply

Compact size (11.30"L x 10.79"W x 6.97" H)

Drive Housing for two 3.5" disk drives

Cooling Fan 9.2 cm with replaceable filter.

POWER ON/OFF & RESET switch, LED indicators for ON/OFF and HDD

IND-670 Mounting Dimensions

The IND-670 is ideally suited for system integrators and end users who require a rugged cost effective Industrial PC designed to be mounted on the backpanel of an enclosure or set on a desktop. It is specifically designed for un-attended applications where the operating system, application programs and data reside on a solid state disk.

Rugged and versatile, the IND-670 can be located close to the process it controls and/or monitors. It can be configured as a stand alone device or linked via a local area network as part of a distributed control system.

The IND-670 and it's 6-slot ISA(Optional 4-Slot) passive backplane are IBM AT compatible and support all popular operating systems, development tools and industrial/scientific application software packages. This combination provides a foundation for creating solutions to a multitude of factory floor and laboratory problems.

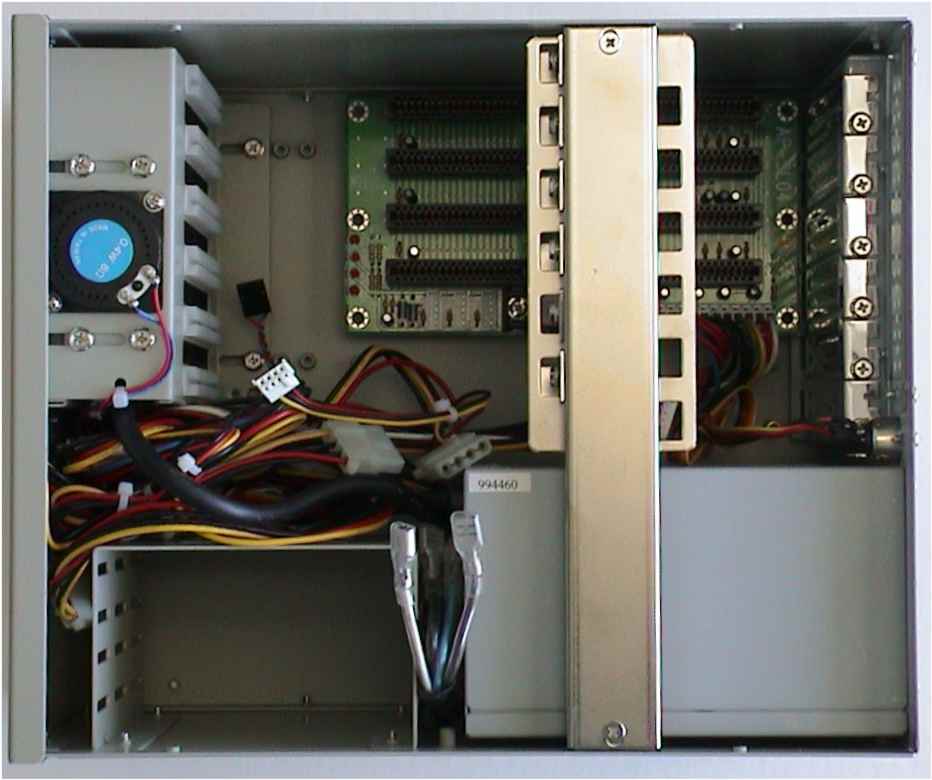

ind-670 inside view
