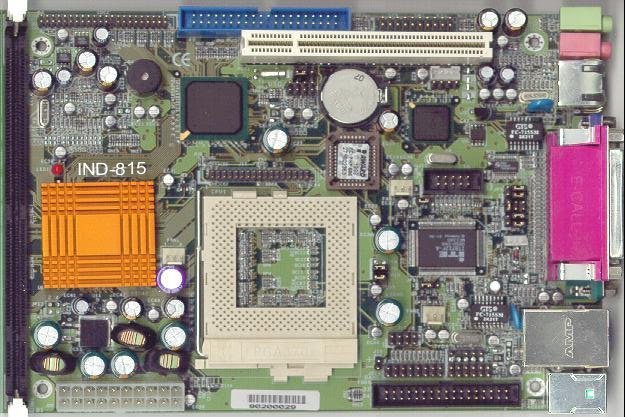

IND-815 PENTIUM III INDUSTRIAL CPU BOARD



IND-815

Features

5.25" form factor Single Board Computer
Pentium III Socket 370 Processors
533-1G  mhz Intel Celerion, Cyrix III, VIA C3
Up to 256 MB SDRAM in one 168-Pin DIMM  socket, PC100/PC133 supported
Intel 815E chipset integrates graphics
ITE 8712 I/O chipset integrates Ethernet and audio with AC97


PnP AWARD FLASH BIOS Y2K compliant with  ACPI support
On-Board PCI extension slot.
10/100 Base-T Ethernet controller with RJ-45 connector on-board.
Option for Secondary  Intel 82559 Ethernet controller with RJ-45.
VGA CRT connector on-board
On-board 4MB display cache
Pin header for optional TV-out board with S-Video & RCA jacks.

Two USB Ports on-board
Two USB pin header provided
Dual On-board Enhanced Ultra DMA/33/66/100 PCI-IDE Controllers Support 4 Drives and ATAPI CD-ROM.
FDD controller supporting 2.88 MB drives or LS-120 floppy drive
1 RS-232 Serial Port  w/16550 FIFO
1 RS-232/422/486 port
256-Level Watch Dog Timer
On-board PS/2 Keyboard/Mouse connectors

IrDA  TX/RX pin header.
Multi-Mode (SPP/EPP/ECP), Bi-Directional High Performance Parallel Port
On-Board Buzzer & External Speaker Interface

Build-in System Monitors CPU/system temperature and voltage
Power connector: ATX type power connector.
Size (7.99" x 5.75")
Operating Temp 0-60° C , 10-95%RH, non-condensing




The IND-815 is a highly integrated embedded system containing a high performance Pentium III processor, Graphics and Memory Controller Hub, the I/O controller Hub, and the Firmware Hub.  The IND-815 is built around the most advanced core logic chipset available, the Intel 815E chipset, it supports 66/100/133MHz system bus up to 1GHz CPU speed, PC100/PC133 SDRAM up to256MB, and integrated with 2D/3D graphics accelerator.  The performance that comes with this board includes UATA33/66/100, audio with AC97 codec, IrDA interface, four USB ports, and integrated LAN.


The IND-815 is equipped with one PCI extend slot
. It's PCI architecture, supporting bus transfers up to 132 mega bytes per second, eliminates bottlenecks between the CPU and high speed peripherals.


The IND-815 contains  enhanced Ultra-DMA/33/66/100 PCI-IDE interfaces, supporting up to four IDE devices including IDE Flash module (up to 6 GB), and ATAPI CD-ROM. The dual floppy controller accommodates up to  2.88MB devices, includes
LS-120 IDE floppy drives . The high performance parallel port supports mult-mode (SPP/EPP/ECP) operations. Two serial ports contain one RS232 and one RS232/RS422/ RS485 .adjustable.
