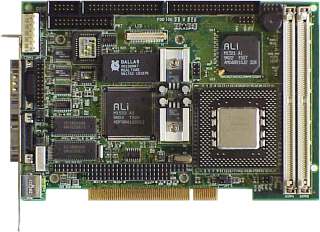

IND-PPCI INDUSTRIAL CPU BOARD

IND-PPCI

Features

Half-size PCI Bus Compatible Single Board
Intel Pentium 75-200 MHz Processor or Cyrix 6x86
Up to 128 MB EDO/FPM DRAM
512KB Async L2 Cache
On-board PC-104 Connector
PCI Video controller (C&T 65548) with 1MB supports CRTs and Flat Panels
On-board PCI IDE port supports two drives
Dual FDD controller supporting 2.88 MB drives
Two RS-232 Serial Ports with 16550 FIFOs
Multi-Mode (SPP/EPP/ECP), High Performance Parallel Port
16 Level Watch Dog Timer
On-board PS/2 Mouse connector
Plug & Play AWARD FLASH BIOS
Power requirements : 5V@5A(max)
Small Size (7.28" x 4.8")
Operating Temp 0-60 C , 10-95%RH, non-condensing

The IND-PPCI is a low cost high performance Pentium MMX single board computer (SBC) designed for use in PCI passive backplane systems. With its compact half size form factor, the IND-PPCI is an ideal solution for the OEM/system integrator marketplace.

Its PCI architecture, supporting bus transfers at 132 mega bytes per second, eliminates bottlenecks between the CPU and high speed peripherals. Cost effective PC/104 daughter boards can also be accommodated.

The on-board video controller with 2MB of VRAM supports CRT and flat panel operation.

The IND-PPCI provides an enhanced PCI-IDE interfaces, supporting up to two IDE devices. The dual floppy controller accommodates 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB devices. The high performance parallel port supports mult-mode (SPP/EPP/ECP) operations. Both serial ports contain 16550 compatible FIFOs to eliminate data loss at high baud rates.
