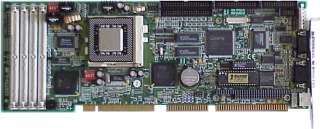

IND-PV INDUSTRIAL CPU BOARD


IND-PV

Features

Full-size PCI-ISA Bus Compatible Single Board Computer
Supports Intel Pentium MMX, AMD K6 and Cyrix M2 Processors from 166-233 Mhz
Up to 256 MB EDO/FPM DRAM
512KB Pipeline Burst Sync L2 Cache
On-Board PC-104 Connector
Intel Triton 430TX Chipset
Dual On-board Enhanced PCI-IDE Controllers Support 4 Drives (supports Ultra-DMA/33)
Dual FDD controller supporting 2.88 MB drives
Two RS-232 Serial Ports with 16550 FIFOs
Multi-Mode (SPP/EPP/ECP), High Performance Parallel Port
2 USB Ports
Disk On Chip Socket Supporting up to 72 MB
16 Level Watch Dog Timer
On-board PS/2 Mouse connector
Plug & Play AWARD FLASH BIOS
Real Time Clock/Calendar with Rechargeable Battery
On-Board Buzzer & External Speaker Interface
Power requirements : 5V@10A(max)
Size (13.1" x 4.8")
Operating Temp 0-60 C , 10-95%RH, non-condensing

The IND-PV is a highly integrated Pentium MMX single board computer (SBC) designed for use in PCI passive backplane systems.

Its PCI architecture, supporting bus transfers up to 132 mega bytes per second, eliminates bottlenecks between the CPU and high speed peripherals. Cost effective ISA bus adapter cards can also be accommodated.

Video controller supports simultaneous CRT and flat panel. Supports flat panel mono, color STN, TFT and EL. Supports USB devices.

Between 8 and 256 mega bytes of DRAM can be accommodated with four 72-pin SIMM sockets.

The IND-PV provides two enhanced PCI-IDE interfaces, supporting up to four IDE devices. The dual floppy controller accommodates 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB devices. The high performance parallel port supports mult-mode (SPP/EPP/ECP) operations. Both serial ports contain 16550 compatible FIFOs to eliminate data loss at high baud rates.
